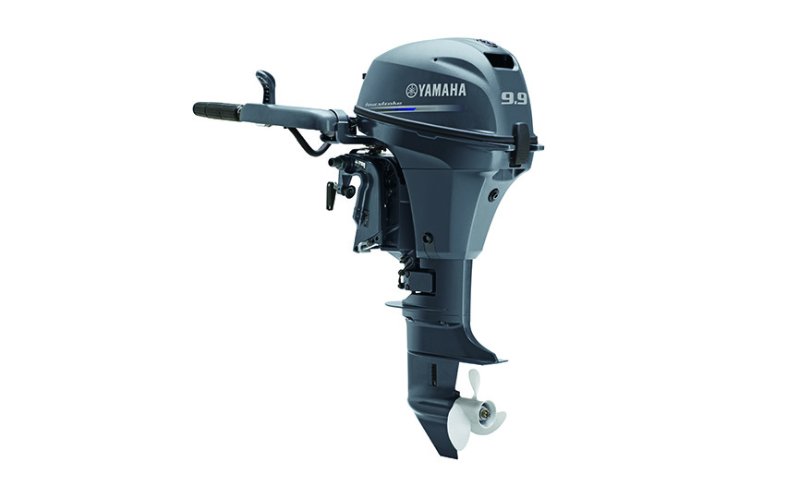

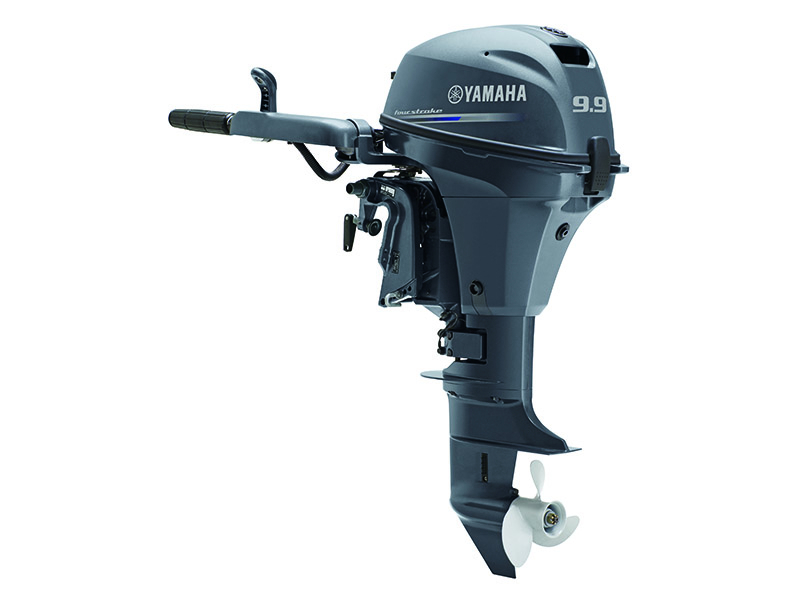

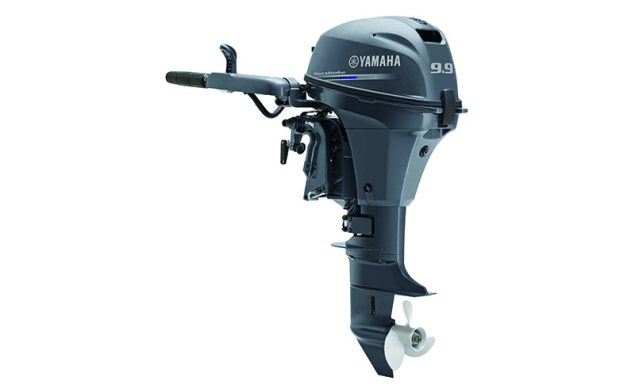

F9.9JMHL
The Africa 4-stroke range, born from monitoring and Yamaha's long experience, has been specially developed to meet the extreme conditions of use. Power and reliability are the hallmarks of this range of engines in a field where Yamaha is the reference brand.
Technical Specifications
MOTOR
- Max.Prop Shaft Horsepower (Kw) : 7.3 (9.9 hp)
DIMENSIONS
- Engine transom height (mm) : L : 558 (22.0 inch)
- Dry weight with propeller (kg) : 51
WARRANTY
- Manufacturer Warranty : Professional use : 6 months / Private use : 12 months
- Retail Network : YAMAHA
Models available
F9.9JMHL
F9.9JMHL F9.9JMHL
Technical Specifications
MOTOR |
|
| Bore x Stroke (mm) | 56.0 X 43.0 |
| Displacement (cc) | 212 |
| Fuel consumption (L/h-tr/min) | 3.9 L/h @5500 r/min |
| Full throttle operating range (tr/min) | 5000-6000 |
| Gear Ratio | |
| Max.Prop Shaft Horsepower (Kw) | 7.3 (9.9 hp) |
| Maximum Power (Kw) | |
| Reduction ratio | 56.0 X 43.0 |
 MORE |
|
| Alternator | 6 A |
DIMENSIONS |
|
| Dry weight with propeller (kg) | 45 |
| Engine Oil Capacity (L) | |
| Engine transom height (mm) | L : 558 (22.0 inch) |
| Oil capacity (L) | 0.8 L |
Equipments
REGULAR PROPELLER (3 blades) |
|
| Diameter | 8 1/2 |
| Material | ALUMINUM |
EQUIPMENT |
|
| Fuel Pipe Comp. | Yes |
| Fuel Tank comp. | Yes |
| Service kit assy. | Yes |
Gallery
Non-contractual images
