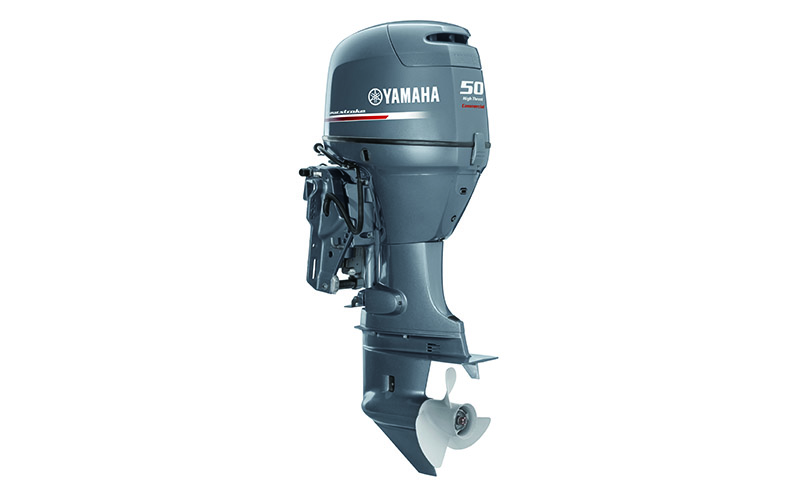

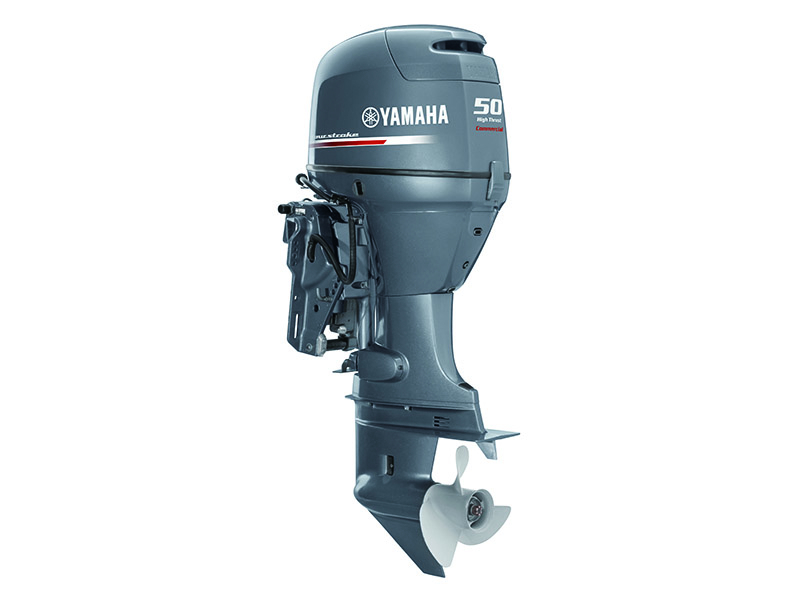

F50DETL
The Africa 4-stroke range, born from monitoring and Yamaha's long experience, has been specially developed to meet the extreme conditions of use. Power and reliability are the hallmarks of this range of engines in a field where Yamaha is the reference brand.
Technical Specifications
MOTOR
- Max.Prop Shaft Horsepower (Kw) : 36.8 (50 ch)
DIMENSIONS
- Engine transom height (mm) : L: 533 (21.0 inch)
- Dry weight with propeller (kg) : 110
WARRANTY
- Manufacturer Warranty : Professional use : 6 months / Private use : 12 months
- Retail Network : YAMAHA
Models available
F50DETL
F50DETL F50DETL
Technical Specifications
MOTOR |
|
| Bore x Stroke (mm) | 63.0 X 75.0 |
| Displacement (cc) | 935 |
| Fuel consumption (L/h-tr/min) | 15.7 L/h @5500 r/min |
| Full throttle operating range (tr/min) | 5000-6000 |
| Gear Ratio | |
| Max.Prop Shaft Horsepower (Kw) | 36.8 (50 hp) |
| Maximum Power (Kw) | |
| Reduction ratio | 9.3:1 |
 MORE |
|
| Alternator | 10 A |
DIMENSIONS |
|
| Dry weight with propeller (kg) | 110 |
| Engine Oil Capacity (L) | |
| Engine transom height (mm) | L: 533 (21.0 inch) |
| Oil capacity (L) | 2.2 L/2.0 L |
Equipments
EQUIPMENT |
|
| 15ft Cable Remocon | Yes |
| Fuel Tank comp. | Yes |
| Remocon Control | Yes |
| Service kit assy. | Yes |
| Tachometer | Yes |
REGULAR PROPELLER (3 blades) |
|
| Diameter | 11 1/8 |
| Material | ALUMINUM |
Gallery
Non-contractual images
