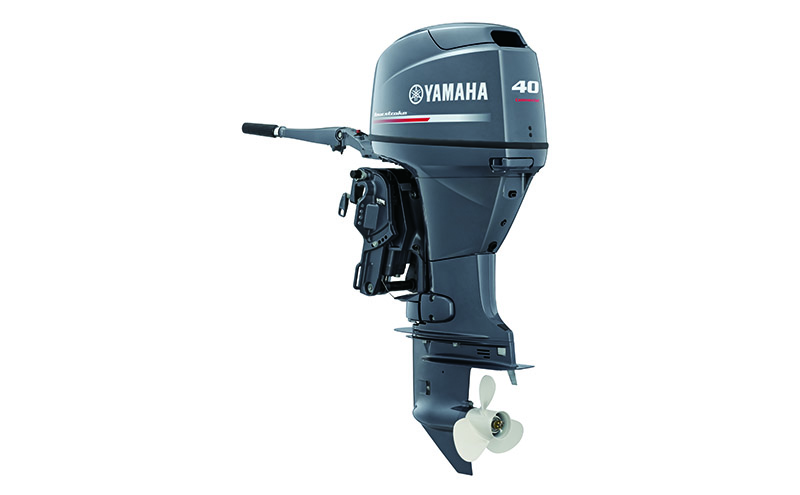

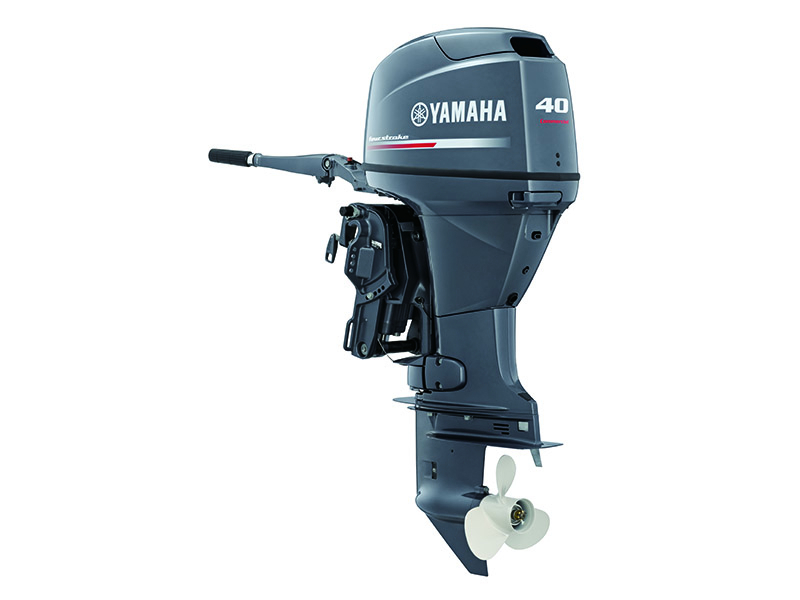

F40JMHDL
The Africa 4-stroke range, born from monitoring and Yamaha's long experience, has been specially developed to meet the extreme conditions of use. Power and reliability are the hallmarks of this range of engines in a field where Yamaha is the reference brand.
Technical Specifications
MOTOR
- Max.Prop Shaft Horsepower (Kw) : 29.4 (40 ch)
DIMENSIONS
- Engine transom height (mm) : L: 536 (21.1 inch)
- Dry weight with propeller (kg) : 131
WARRANTY
- Manufacturer Warranty : Professional use : 6 months / Private use : 12 months
- Retail Network : YAMAHA
Models available
F40JMHDL
F40JMHDL F40JMHDL
Technical Specifications
MOTOR |
|
| Bore x Stroke (mm) | 65.0 X 75.0 |
| Displacement (cc) | 747 |
| Fuel consumption (L/h-tr/min) | 15.2 L/h @5500 r/min |
| Full throttle operating range (tr/min) | 5000-6000 |
| Gear Ratio | 2.0 (26/13) |
| Max.Prop Shaft Horsepower (Kw) | 29.4 (40 hp) |
| Maximum Power (Kw) | |
| Reduction ratio | 9.4 :1 |
 MORE |
|
| Alternator | 14 A |
DIMENSIONS |
|
| Dry weight with propeller (kg) | 131 |
| Engine Oil Capacity (L) | |
| Engine transom height (mm) | L: 536 (21.1 inch) |
| Oil capacity (L) | 1.7 L / 1.5 L |
WARRANTY |
|
| Manufacturer Warranty | Professional use : 6 months |
Equipments
REGULAR PROPELLER (3 blades) |
|
| Diameter | 11 3/8 |
| Material | ALUMINUM |
EQUIPMENT |
|
| Fuel Pipe Comp. | Yes |
| Fuel Tank comp. | Yes |
| Kill Switch | Yes |
| Service kit assy. | Yes |
Gallery
Non-contractual images
