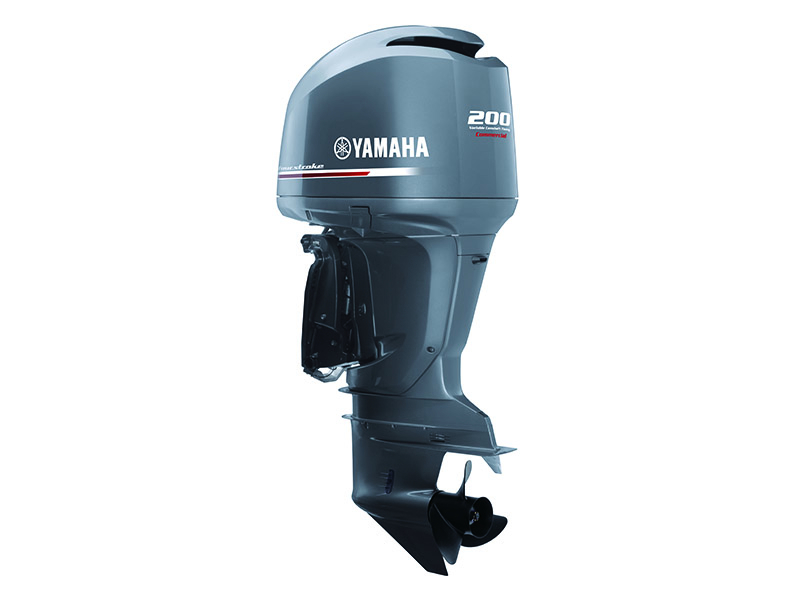

F200BETX-FL200BETX

The Africa 4-stroke range, born from monitoring and Yamaha's long experience, has been specially developed to meet the extreme conditions of use. Power and reliability are the hallmarks of this range of engines in a field where Yamaha is the reference brand.

Technical Specifications

MOTOR

• Max.Prop Shaft Horsepower (Kw) : 147.1 (200 ch)

DIMENSIONS

• Engine transom height (mm) : X : 643 (25.3 inch)
• Dry weight with propeller (kg) : 356

WARRANTY

• Manufacturer Warranty : Professional use : 6 months / Private use : 12 months
• Retail Network : YAMAHA

More information

F200BETX

Spec sheet

F200BETX/FL200BETX F200BETX

Technical Specifications

MOTOR
Bore x Stroke (mm)	94.0 X 80.5
Displacement (cc)	3352
Fuel consumption (L/h-tr/min)	73.7 L/h @5500 r/min
Full throttle operating range (tr/min)	5000-6000
Gear Ratio
Max.Prop Shaft Horsepower (Kw)	147.1 (200 hp)
Maximum Power (Kw)
Reduction ratio	9.9 :1
ENGINE
Max power HP/rpm	1
MORE
Alternator	46 A
DIMENSIONS
Dry weight with propeller (kg)	356
Engine transom height (mm)	X : 643 (25.3 inch)
Oil capacity (L)	4.7 L/4.5 L

Equipments

REGULAR PROPELLER (3 blades)
Diameter	14 1/2
Material	STEEL
EQUIPMENT
Remocon Control	Yes
Service kit assy.	Yes
Speedo Assy.	Yes
Tachometer	Yes

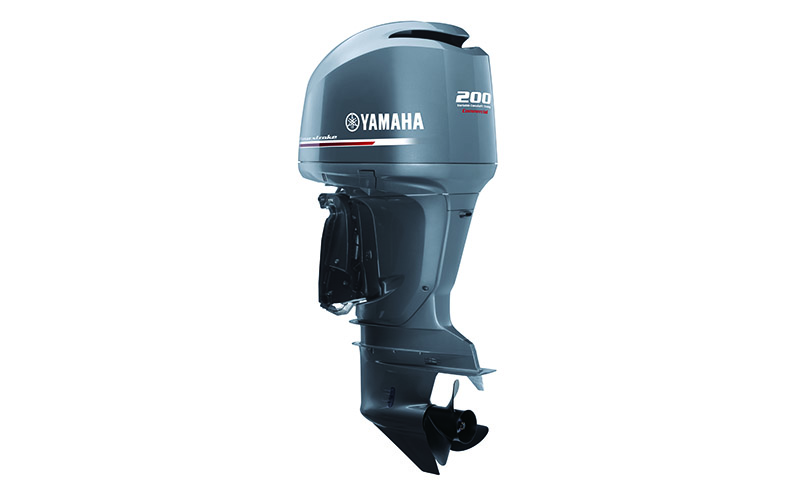

FL200BETX

Spec sheet

F200BETX/FL200BETX FL200BETX

Technical Specifications

MOTOR
Bore x Stroke (mm)	94.0 X 80.5
Displacement (cc)	3352
Fuel consumption (L/h-tr/min)	73.7 L/h @5500 r/min
Full throttle operating range (tr/min)	5000-6000
Gear Ratio
Max.Prop Shaft Horsepower (Kw)	147.1 (200 hp)
Maximum Power (Kw)
Reduction ratio	9.9 :1
MORE
Alternator	46 A
DIMENSIONS
Dry weight with propeller (kg)	289
Engine Oil Capacity (L)
Engine transom height (mm)	X : 643 (25.3 inch)
Oil capacity (L)	4.7 L/4.5 L

Equipments

REGULAR PROPELLER (3 blades)
Diameter	14 1/2
Material	STEEL
EQUIPMENT
Fuel Meter Movement	Yes
Panel Switch	Yes
Remocon Control	Yes
Ride, Guide Kit Twin	Yes
Service kit assy.	Yes
Tachometer	Yes

Non-contractual images
