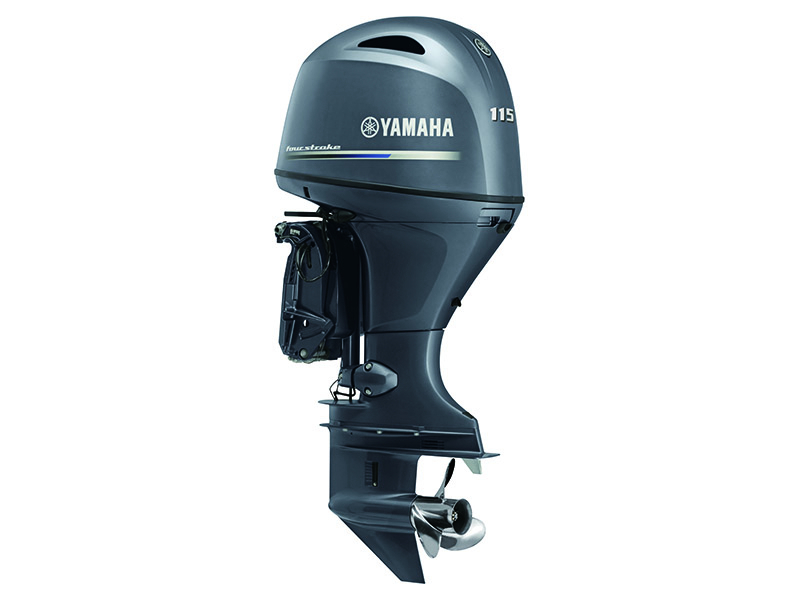

F115BETX-FL115BETX

The Africa 4-stroke range, born from monitoring and Yamaha's long experience, has been specially developed to meet the extreme conditions of use. Power and reliability are the hallmarks of this range of engines in a field where Yamaha is the reference brand.

Technical Specifications

MOTOR

• Max.Prop Shaft Horsepower (Kw) : 84.6 (115 ch)

DIMENSIONS

• Engine transom height (mm) : X : 643 (25.3 inch)
• Dry weight with propeller (kg) : 230

WARRANTY

• Manufacturer Warranty : Professional use : 6 months / Private use : 12 months
• Retail Network : YAMAHA

More information

F115BETX

Spec sheet

F115BETX/FL115BETX F115BETX

Technical Specifications

MOTOR
Bore x Stroke (mm)	81.0 X 88.9
Displacement (cc)	1832
Fuel consumption (L/h-tr/min)	38.9 L/h @5800 r/min
Full throttle operating range (tr/min)	5300-6300
Gear Ratio
Max.Prop Shaft Horsepower (Kw)	84.6 (115 hp)
Maximum Power (Kw)
Reduction ratio	10.0 :1
ENGINE
Max power HP/rpm	1
MORE
Alternator	35 A
DIMENSIONS
Dry weight with propeller (kg)	230
Engine Oil Capacity (L)
Engine transom height (mm)	X : 643 (25.3 inch)
Oil capacity (L)	3.2 L / 3.0 L

Equipments

REGULAR PROPELLER (3 blades)
Diameter	13
Material	STEEL
EQUIPMENT
Multi Display	Yes
Panel Switch	Yes
Remocon Control	Yes
Service kit assy.	Yes

FL115BETX

Spec sheet

F115BETX/FL115BETX FL115BETX

Technical Specifications

MOTOR
Bore x Stroke (mm)	81.0 X 88.9
Displacement (cc)	1832cm3
Fuel consumption (L/h-tr/min)	38.9 L/h @5800 r/min
Full throttle operating range (tr/min)	5300-6300
Gear Ratio
Max.Prop Shaft Horsepower (Kw)	84.6 kW (115 hp)
Maximum Power (Kw)
Reduction ratio	10.0 :1
MORE
Alternator	35 A
DIMENSIONS
Dry weight with propeller (kg)	179
Engine Oil Capacity (L)	0.760L
Engine transom height (mm)	X : 643 (25.3 inch)
Oil capacity (L)	3.2 L

Equipments

REGULAR PROPELLER (3 blades)
Diameter	13
Material	STEEL
EQUIPMENT
Panel Switch	Yes
Remocon Control	Yes
Ride, Guide Kit Twin	Yes
Service kit assy.	Yes

Non-contractual images
