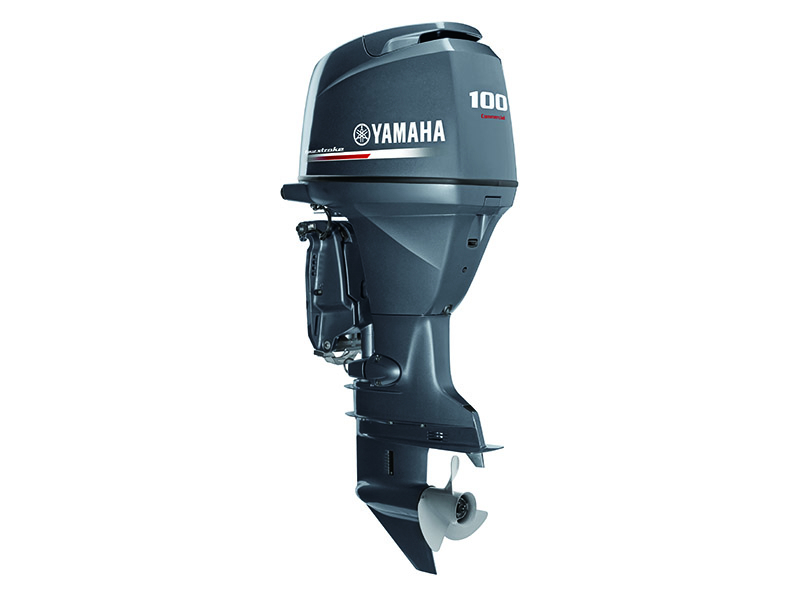

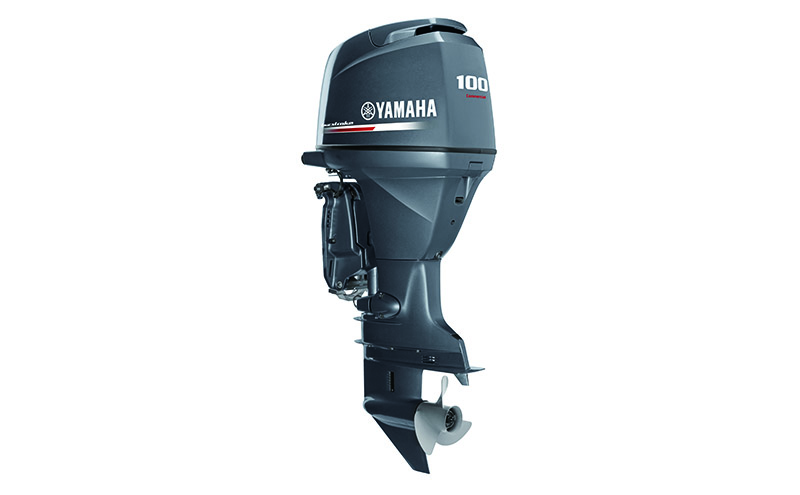

F100BETL/F100BETX

The Africa 4-stroke range, born from monitoring and Yamaha's long experience, has been specially developed to meet the extreme conditions of use. Power and reliability are the hallmarks of this range of engines in a field where Yamaha is the reference brand.

Technical Specifications

MOTOR

• Max.Prop Shaft Horsepower (Kw) : 73.6 (100 ch)

DIMENSIONS

• Engine transom height (mm) : L:516 mm (20.3 inch) - X : 643 mm (25.3 inch)
• Dry weight with propeller (kg) : 188

WARRANTY

• Manufacturer Warranty : Professional use : 6 months / Private use : 12 months
• Retail Network : YAMAHA

More information

F100BETL

Spec sheet

F100BETL/F100BETX F100BETL

Technical Specifications

MOTOR
Bore x Stroke (mm)	79.0 X 81.4
Displacement (cc)	1596
Fuel consumption (L/h-tr/min)	31.9 L/h @5500 r/min
Full throttle operating range (tr/min)	5000-6000
Gear Ratio
Max.Prop Shaft Horsepower (Kw)	73.6 (100 ch)
Maximum Power (Kw)
Reduction ratio	8.9 :1
MORE
Alternator	20 A
DIMENSIONS
Dry weight with propeller (kg)	188
Engine Oil Capacity (L)
Engine transom height (mm)	L:516 mm (20.3 inch) - X : 643 mm (25.3 inch)
Oil capacity (L)	3.7 L / 3.5 L

Equipments

REGULAR PROPELLER (3 blades)
Diameter	13 1/4
Material	ALUMINUM
EQUIPMENT
Fuel Pipe Comp.	Yes
Remocon Control	Yes
Service kit assy.	Yes
Tachometer	Yes

F100BETX

Spec sheet

F100BETL/F100BETX F100BETX

Technical Specifications

MOTOR
Bore x Stroke (mm)	79.0 X 81.4
Displacement (cc)	1596
Fuel consumption (L/h-tr/min)	31.9 L/h @5500 r/min
Full throttle operating range (tr/min)	5000-6000
Gear Ratio
Max.Prop Shaft Horsepower (Kw)	73.6 (100 hp)
Maximum Power (Kw)
Reduction ratio	8.9 :1
MORE
Alternator	20 A
DIMENSIONS
Dry weight with propeller (kg)	188
Engine transom height (mm)	X : 643 (25.3 inch)
Oil capacity (L)	3.7 L / 3.5 L

Equipments

REGULAR PROPELLER (3 blades)
Diameter	13 1/2
Material	ALUMINUM
EQUIPMENT
Fuel Pipe Comp.	Yes
Remocon Control	Yes
Service kit assy.	Yes
Tachometer	Yes

Non-contractual images
