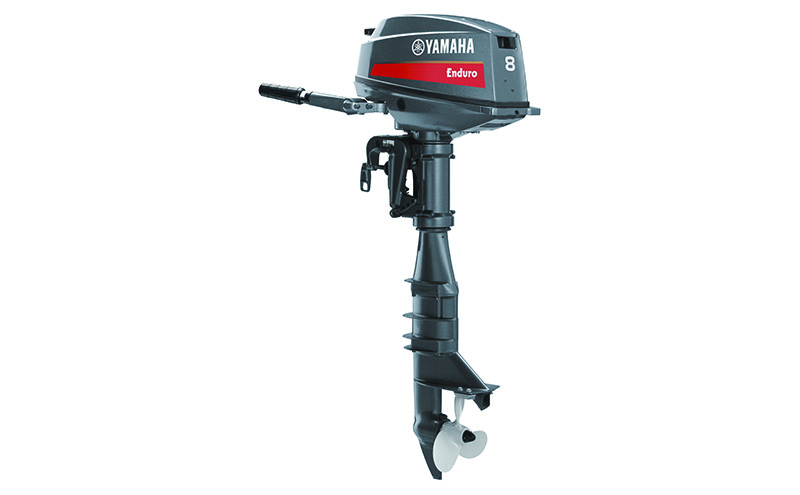

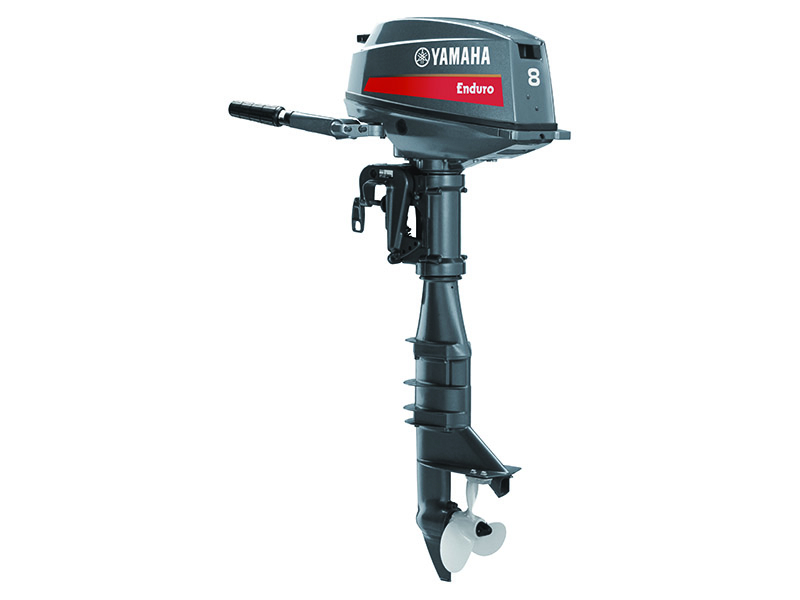

E8DMHL

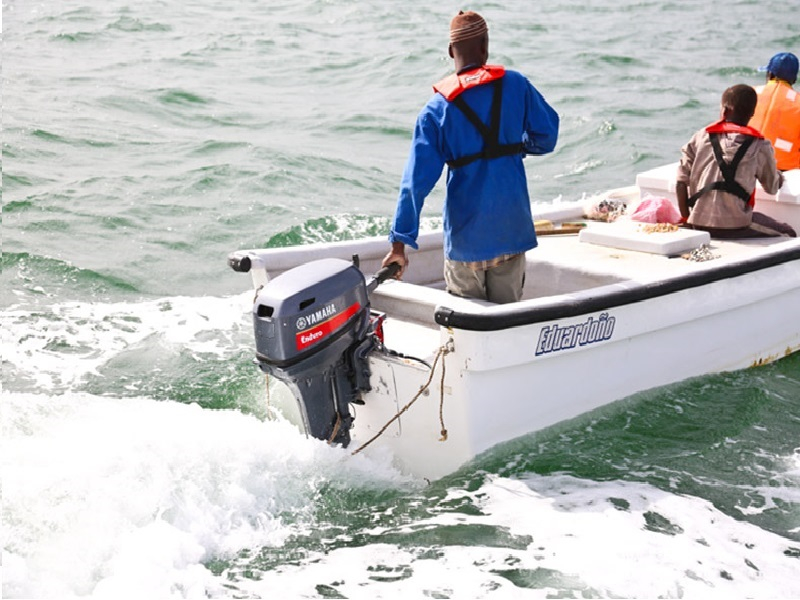

The ENDURO engines, true working machines, offer an unparalleled price/performance ratio and can withstand the most extreme conditions of use, and it is no coincidence that YAMAHA Enduro engines are used in the vast majority of traditional fishing canoes.
Technical Specifications
MOTOR
- Max.Prop Shaft Horsepower (Kw) : 5.9 (8 ch)
DIMENSIONS
- Engine transom height (mm) : L : 582 mm (22.9 in)
- Dry weight with propeller (kg) : 39
WARRANTY
- Manufacturer Warranty : Professional use : 6 months / Private use : 12 months
- Retail Network : YAMAHA
Models available
E8DMHL
E8DMHL E8DMHL
Technical Specifications
MOTOR |
|
| Bore x Stroke (mm) | 50.0 X 42.0 |
| Displacement (cc) | 165 |
| Fuel consumption (L/h-tr/min) | 4.0 L/h @5500 r/min |
| Full throttle operating range (tr/min) | 4500-5500 |
| Gear Ratio | 2.08 (27/13) |
| Max.Prop Shaft Horsepower (Kw) | 5.9 (8 ch) |
| Maximum Power (Kw) | |
| Reduction ratio | 6.8 :1 |
 MORE |
|
| Alternator | 40 W (optinal) |
DIMENSIONS |
|
| Dry weight with propeller (kg) | 39 |
| Engine Oil Capacity (L) | |
| Engine transom height (mm) | L : 582 mm (22.9 in) |
| Oil capacity (L) | |
Equipments
REGULAR PROPELLER (3 blades) |
|
| Diameter | 9 |
| Material | ALUMINUM |
EQUIPMENT |
|
| Fuel Pipe Comp. | Yes |
| Fuel Tank comp. | Yes |
| Service kit assy. | Yes |
Gallery
Non-contractual images
