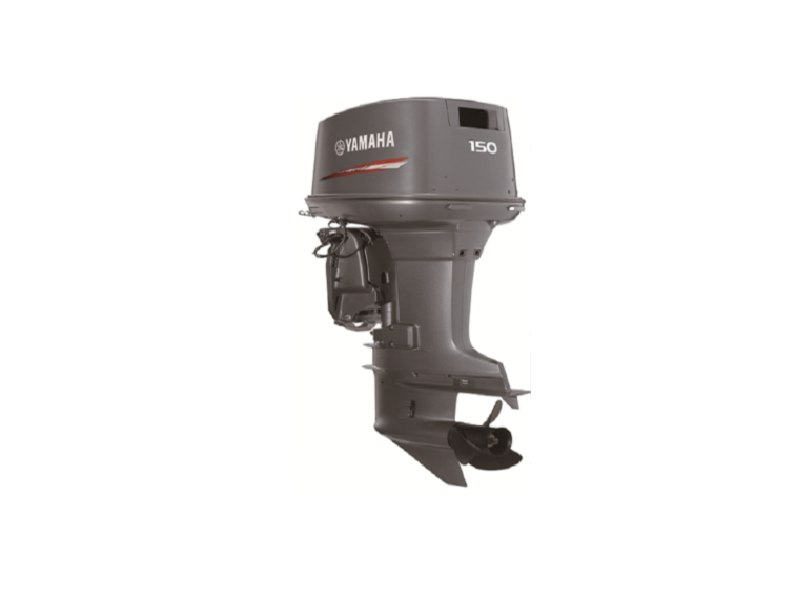

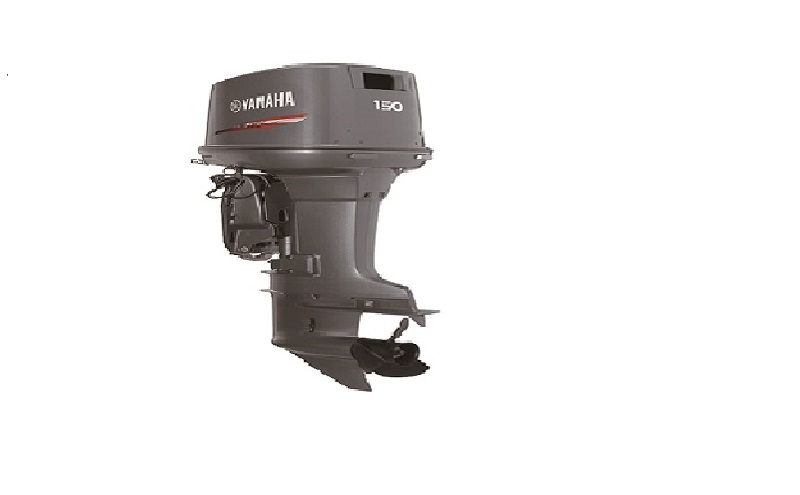

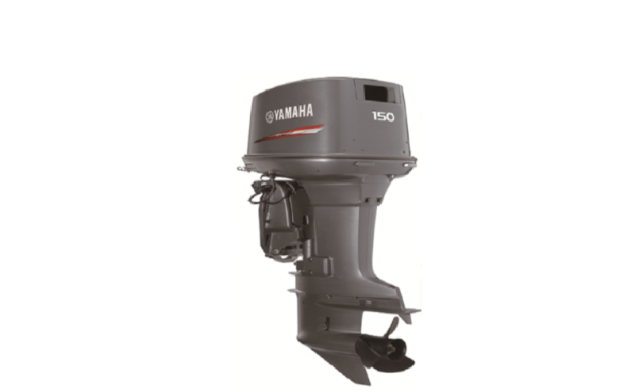

E150AETX
The ENDURO engines, true working machines, offer an unparalleled price/performance ratio and can withstand the most extreme conditions of use, and it is no coincidence that YAMAHA Enduro engines are used in the vast majority of traditional fishing canoes.
Technical Specifications
MOTOR
- Engine Type : 2 temps
- Start-up : Electrique
- Max.Prop Shaft Horsepower (Kw) : 110.3 (150 ch)
DIMENSIONS
- Engine transom height (mm) : X : 642 (25.3 in)
- Dry weight with propeller (kg) : 184
WARRANTY
- Manufacturer Warranty :
- Retail Network : YAMAHA
Models available
E150AETX
E150AETX E150AETX
Technical Specifications
MOTOR |
|
| Architecture | V6 |
| Bore x Stroke (mm) | 90.0 X 68.0 |
| Displacement (cc) | 2596 |
| Engine Type | 2 temps |
| Fuel | Essence ordinaire |
| Fuel consumption (L/h-tr/min) | 72 l./h @5500 tr/min |
| Full throttle operating range (tr/min) | 4500-5500 |
| Gear Ratio | |
| Ignition System | |
| Lubrication system | Pré-mélange à 2 % |
| Max.Prop Shaft Horsepower (Kw) | 110.3 (150 ch) |
| Maximum Power (Kw) | |
| Number of Displacement | |
| Power system | 3 carburateurs double corps |
| Reduction ratio | 6.2 :1 |
| Reverse direction | |
| Start-up | Electrique |
| Steering Control | |
| Trim method (positions) | |
 MORE |
|
| Alternator | 14 A |
| Control | à distance |
| Propeller Rotation | Sens horaire |
DIMENSIONS |
|
| Dry weight with propeller (kg) | 184 |
| Engine Oil Capacity (L) | |
| Engine transom height (mm) | X : 642 (25.3 in) |
| Oil capacity (L) | |
Equipments
EQUIPMENT |
|
| 19ft Cable Remocon | Yes |
| Cable end, Remote control | Yes |
| Remocon Control | Yes |
| Service kit assy. | Yes |
| Tachometer | Yes |
| Trim Meter | Yes |
REGULAR PROPELLER (3 blades) |
|
| Diameter | 13 3/4 |
| Material | STEEL |
Gallery
Non-contractual images
